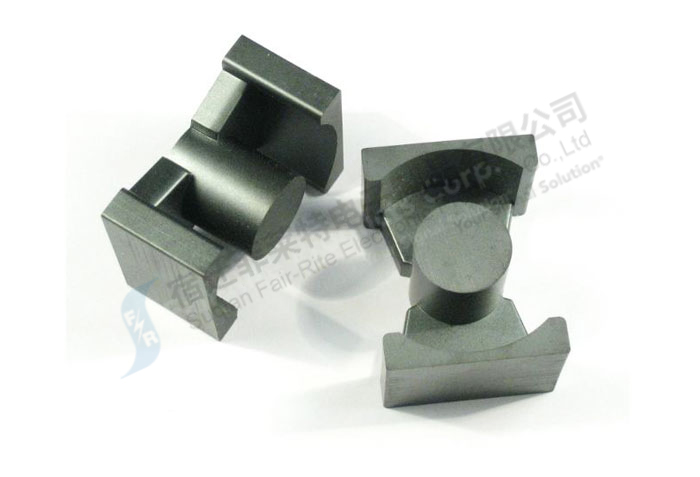

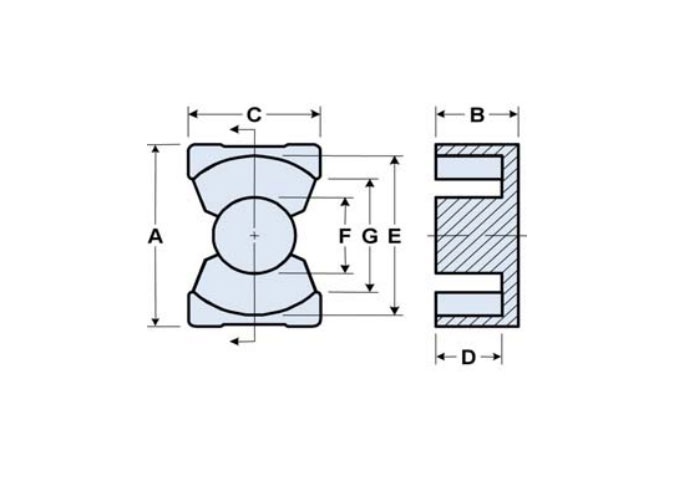

尺 寸
排# | 零件號 | 通用 規格 | A | B | C | D | E | F | G | 重量 每套 |
(1) | 6678211621 6698211621 6695211621 | PQ20/16 | 20.50±0.40 0.807 | 8.00±0.15 0.315 | 14.00±0.40 0.551 | 5.00±0.15 0.197 | 18.00±0.40 0.709 | 8.80±0.20 0.346 | 12.00 min 0.472 min | 13.00 |
(2) | 6678212021 6698212021 6695212021 | PQ20/20 | 20.50±0.40 0.807 | 10.20±0.15 0.402 | 14.00±0.40 0.551 | 7.00±0.15 0.276 | 18.00±0.40 0.709 | 8.80±0.20 0.346 | 12.00 min 0.472 min | 16.00 |
(3) | 6678272021 6698272021 6695272021 | PQ26/20 | 26.50±0.50 1.043 | 10.10±0.15 0.398 | 19.00±0.40 0.748 | 5.75±0.15 0.226 | 22.50±0.40 0.886 | 12.00±0.30 0.472 | 15.50 min 0.610 min | 30.00 |
(4) | 6678272521 6698272521 6695272521 | PQ26/25 | 26.50±0.50 1.043 | 12.50±0.15 0.492 | 19.00±0.40 0.748 | 8.05±0.15 0.317 | 22.50±0.40 0.886 | 12.00±0.3 0.472 | 15.50 min 0.610 min | 36.00 |
(5) | 6678322121 6698322121 6695322121 | PQ32/20 | 32.00±0.60 1.260 | 10.25±0.150 0.404 | 22.00±0.40 0.866 | 5.75±0.15 0.226 | 27.50±0.50 1.083 | 13.45±0.3 0.530 | 19.00 min 0.748 min | 43.00 |
(6) | 6678323121 6698323121 6695323121 | PQ32/30 | 32.00±0.60 1.260 | 15.15±0.15 0.596 | 22.00±0.40 0.866 | 10.65±0.15 0.419 | 27.50±0.50 1.083 | 13.45±0.30 0.530 | 19.00 min 0.748 min | 57.00 |
(7) | 6678353621 6698353621 6695353621 | PQ35/35 | 35.10±0.60 1.382 | 17.40±0.20 0.685 | 26.00±0.50 1.024 | 12.50±0.20 0.492 | 32.00±0.50 1.260 | 14.35±0.25 0.565 | 23.50 min 0.925 min | 73.00 |
(8) | 6678404121 6698404121 6695404121 | PQ40/40 | 40.50±0.90 1.594 | 19.88±0.13 0.783 | 27.93±0.53 1.100 | 14.75±0.15 0.581 | 36.40 min 1.433 min | 14.70±0.30 0.579 | 27.20 min 1.071 min | 97.00 |
(9) | 6678505021 6698505021 6695505021 | PQ50/50 | 50.00±0.80 1.969 | 25.00±0.15 0.984 | 32.00±0.60 1.260 | 18.10±0.25 0.713 | 44.00 ± 0.7 1.732 | 20.00±0.40 0.787 | 32.00 min 1.260 min | 195.00 |
接上表
磁芯有效參數
排# | 零件號 | ∑l/A(cm-1) | Le(cm) | Ae(cm2) | Ve(cm3) | A min(cm2) | AL(nH) |
(1) | 6678211621 6698211621 6695211621 | 6.00 | 3.69 | 0.615 | 2.27 | 0.601 | 3430 ±25% 3430 ±25% 3880 ±25% |
(2) | 6678212021 6698212021 6695212021 | 7.20 | 4.52 | 0.625 | 2.526 | 0.608 | 2920 ±25% 2920 ±25% 3500 ±25% |
(3) | 6678272021 6698272021 6695272021 | 3.72 | 4.48 | 1.203 | 5.385 | 1.131 | 5510 ±25% 5510 ±25% 6500 ±25% |
(4) | 6678272521 6698272521 6695272521 | 4.59 | 5.40 | 1.177 | 6.359 | 1.131 | 4670 ±25% 4670 ±25% 6000 ±25% |
(5) | 6678322121 6698322121 6695322121 | 3.27 | 5.373 | 1.642 | 8.821 | 1.404 | 6000 ±25% 6000 ±25% 7900 ±25% |
(6) | 6678323121 6698323121 6695323121 | 4.59 | 7.53 | 1.642 | 12.37 | 1.401 | 4500 ±25% 4500 ±25% 6500 ±25% |
(7) | 6678353621 6698353621 6695353621 | 4.82 | 8.82 | 1.83 | 16.13 | 1.617 | 4900 ±25% 5100 ±25% 6200 ±25% |
(8) | 6678404121 6698404121 6695404121 | 5.23 | 10.36 | 1.98 | 20.50 | 1.70 | 4300 ±25% 4300 ±25% 5850 ±25% |
(9) | 6678505021 6698505021 6695505021 | 3.59 | 11.47 | 3.19 | 36.63 | 3.142 | 6720 ±25% 6720 ±25% 8000 ±25% |
