Our newest material, this high frequency MnZn ferrite is ideal for power applications operating between 1 MHz and 5 MHz.
Available in 80 material:
Toroids
Customer Specific Designs
80 Material Characteristics
Property | Unit | Symbol | Value |
Initial Permeability @ B < 10 gauss | μi | 550 | |
Flux Density @ Field Strength | Gauss | B | 4000 |
Residual Flux Density | Gauss | Br | 1000 |
Coercive Force | Oersted | Hc | 0.5 |
Loss Factor @ Frequency | 10 -6 | Tan δ/ μi | 8 |
Temperature Coefficient of Initial Permeability (20 -70°C) | %/°C | — | |
Curie Temperature | °C | Tc | >300 |
Resistivity | ohm-cm | ρ | 1000 |

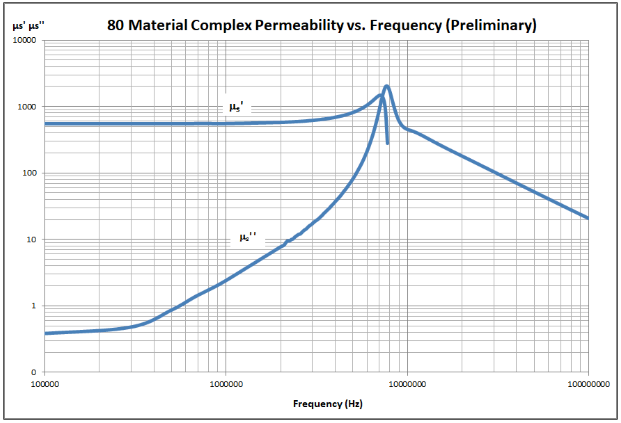

**** Characteristic curves are measured on standard Toroids(18/10/6 mm) at 25°C and 10 kHz unless otherwise indicated. Impedance characteristics are measured on standard shield beads (3.5/1.3/6.0 mm) unless otherwise indicated.
|
